Surround channels draw the audience into the action by creating an immersive multidimensional soundscape. It takes power, fidelity, and coverage to accurately create that experience in an auditorium. With a range of compact enclosures that fit every decor, our Cinema Surround loudspeakers offers the perfect surround solution for any size theater. The all new surround speaker range now offers improved audio performance and better styling to look as good as they sound. Surround loudspeakers are purpose-built for cinema deployment.

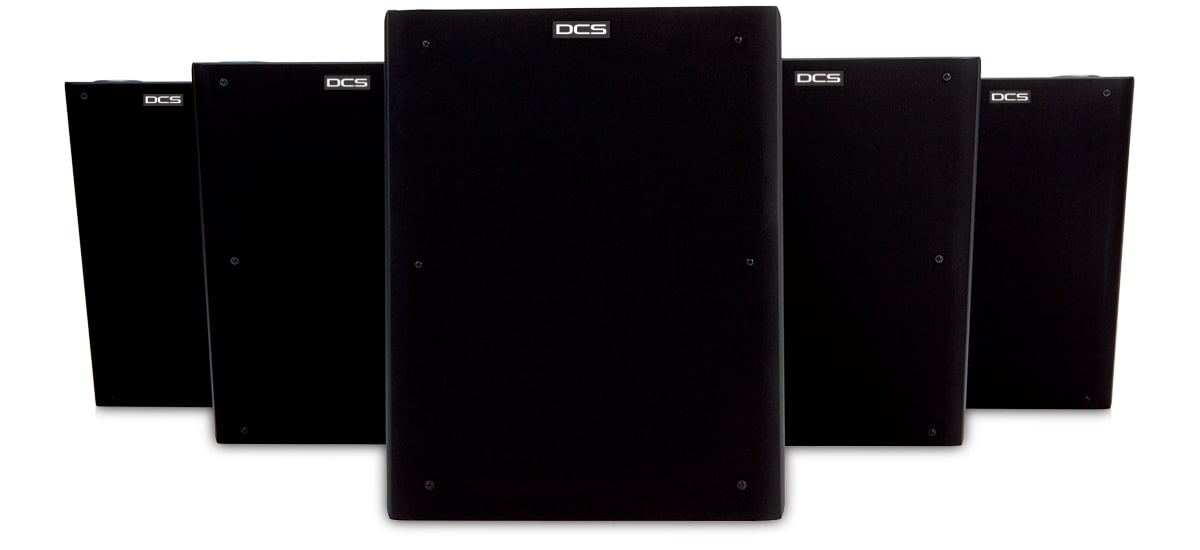

SR Series
Our SR Series surround loudspeakers are made from quality MDF or plywood enclosures that deliver extended bass response over wide coverage areas.
High-output drivers project cleanly to every seat. The uniform power response of these loudspeakers is a result of Directivity Matched Transition® (DMT), a design approach that matches LF and HF coverage in the crossover region.
Most models in the SR Series feature pre-installed speaker-side hardware that allows fast single-installer mounting, and brackets that support down-angles of either 15° (standard) or 23° (optional). We also include parallel outputs to make multi-speaker connections easy.
SELECT A MODEL
| SR-800 | SR-8101 | SR-1000 | SR-8200 | SR-1020 | SR-1030 | SR-1290 | SR-1590 | SR-5152 | |
| System Type | 2-way | 2-way | 2-way | 2-way | 2-way | 2-way | Coaxial 2-way | Coaxial 2-way | 2-way |
|---|---|---|---|---|---|---|---|---|---|
| Frequency Rangeat -10 dB (Hz) 1 | 60 Hz – 20 kHz | 54 Hz – 20 kHz | 64 Hz – 20 kHz | 52 Hz – 20 kHz | 50 Hz – 20 kHz | 56 Hz – 20 kHz | 50 Hz – 20 kHz | 50 Hz – 20 kHz | 44 Hz – 18 kHz |
| Nominal Coverage2 | 135° conical | 130° H x 110° V | 90° conical | 90°H x 90° V | 90°H x 90° V | 90° H x 90°V | 90°H x 90°V | 90°H x 90°V | 75°Axisymmetric |
| Nominal Impedance | 8Ω | 8Ω | 8Ω | 8Ω | 8Ω | 8Ω | 4Ω | 4Ω | 8Ω |
| Rated Noise Power3 | 125 W | 125 W | 150 W | 200 W | 300 W | 400 W | 400 W | 500 W | 625 W |
| Sensitivity4 | 90 dB | 91 dB | 94 dB | 94 dB | 94 dB | 95.5 dB | 96 dB | 98 dB | 96 dB |
| Driver Information | 8″ low-frequency transducer 1″ soft dome tweeter |
8″ low-frequency transducer 1″ soft dome tweeter |
10″ low-frequency transducer 1″ compression driver |
8″ long throw low-frequency transducer, 1.4″ titanium diaphragm compression driver on an Axisymmetric horn |
10″ low-frequency transducer, 1.4″ titanium diaphragm compression driver on an Axisymmetric horn |
10″ long throw lowfrequency transducer, 1.75″ titanium diaphragm compression driver on an Axisymmetric horn |
12″ low-frequency transducer with coaxially-mounted 1.75″ compression driver |
15” (380 mm) LF driver with coaxially-mounted 3” voice coil HF driver |
15″ low-frequency tranducer, 3″ diaphragm compression driver |
| Dimensions (HWD)inches5 | 14.4 x 11.7 x 9 | 19.5 x 12 x 9.6 | 19.5 x 11.7 x 11.5 | 19.5 x 14.3 x 9.6 | 19.5 x 15.8 x 10.2 | 19.5 x 15.8 x 10.2 | 20.25 x 15.75 x 12.75 | 23.6 x 19.7 x 14.2 | 32 x 17.5 x 15.2 |
| Dimensions (HWD) mm5 | 365 x 298 x 228.5 | 495 x 305 x 244 | 495 x 298 x 291 | 495 x 363 x 244 | 495 x 401 x 259 | 495 x 401 x 259 | 515 x 400 x 325 | 605 x 500 x 360 | 813 x 445 x 386 |
| Weight6 | 14.3 lb / 6.5 kg | 18.6 lb / 8.4 kg | 19.8 lb / 9 kg | 24.5 lb / 11.1 kg | 27.1 lb / 12.3 kg | 32 lb / 14.5 kg | 35 lb / 16 kg | 48 lb / 22 kg | 80 lb / 36.2 kg |
| Brackets7 | QM-SW, QM-BW, YM-300 | QM-SW, QM-BW, YM-300 |
QM-SW, QM-BW, YM-300 | QM-SW, QM-BW, YM-46 |
QM-SW, QM-BW, YM-400 |
QM-SW, QM-BW, YM-400 |
QM-SW, QM-BW, YM-400 |
QM-SW, QM-BW, YM-500 |
UB-325-13, MM-120-BT |
| Details | Details | Details | Details | Details | Details | Details | Details | Details | |
| 1 All frequency ranges specified refer to measured free field response (4 pi). 2 Averaged from 1 kHz to 10 kHz, -6 dB,except SR-8101 which is averaged from 1 kHz to 8 kHz. 3 2 hours of 6 dB crest factor pink noise, AES method. 4 Based on nominal impedance, measured in free-field 1 W @ 1 m,except SR-1290 and SR-1590, measured with 2.0V @ 1 m. |
5 Dimensions do not include pre-installed speaker mounting bracket. 6 Unit net weight, all units are pair packed except SR-1290, SR-1590, and SR-5152, which are single packed. 7 QM-BW recommended for rear wall surrounds in steep stadium applications only. Sloped floor and moderate stadium applications should use the QM-SW on side and rear walls. Yoke mounts can be used when adjustable aiming is required. |
||||||||
All specs are subject to change. DCS surrounds connect with barrier strip screw terminals that accept up to #10 AWG stranded wire.
