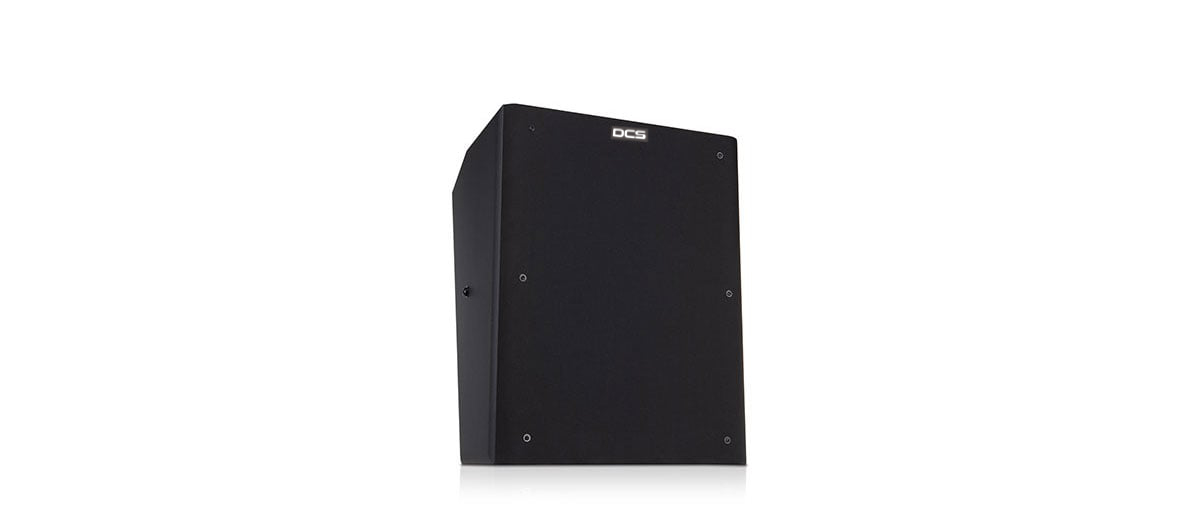

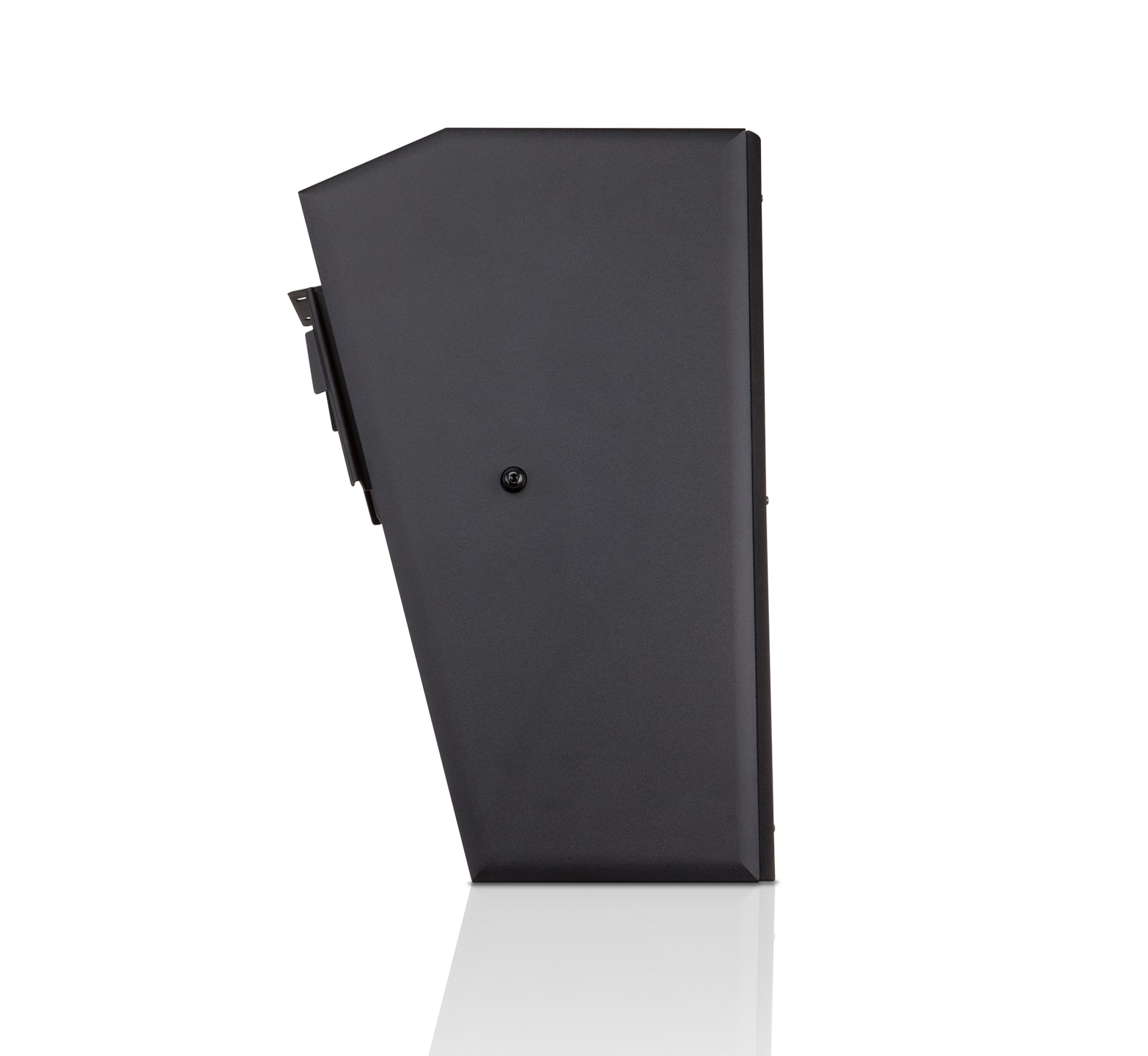

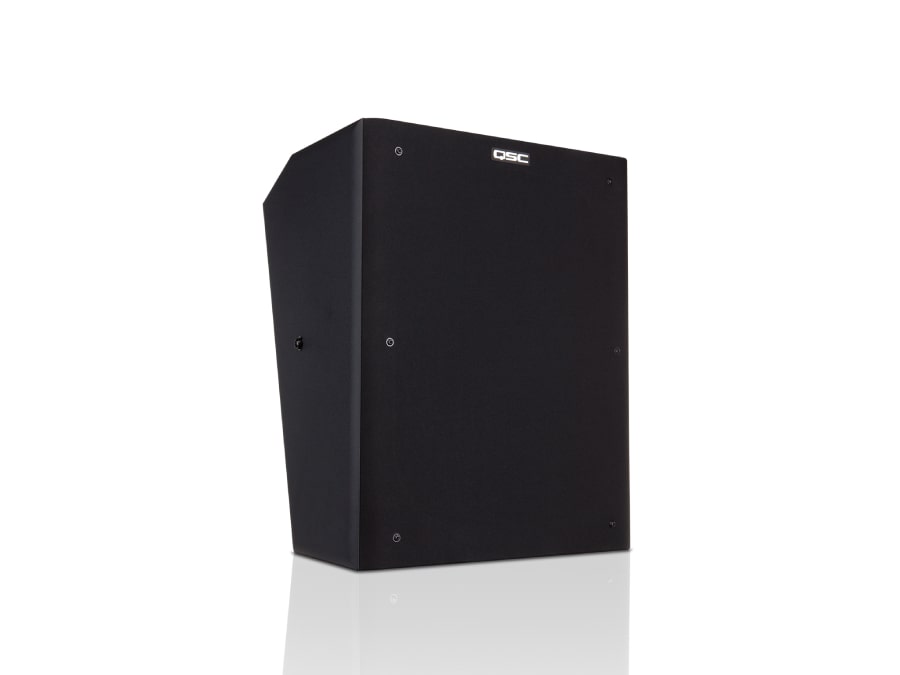

SR-1290

Surround Loudspeaker

Resources

Features

  • High performance for large cinemas

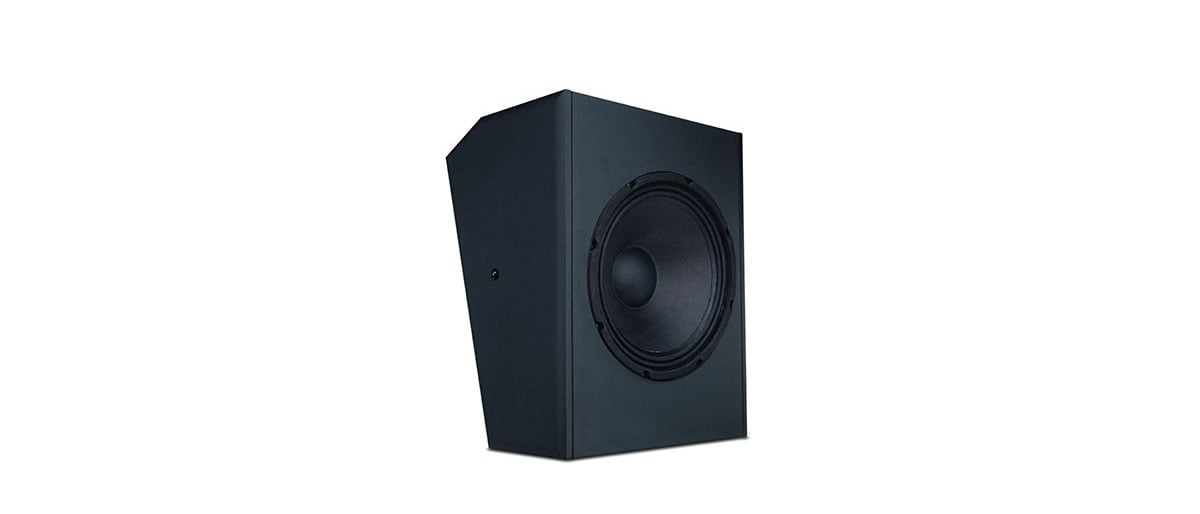

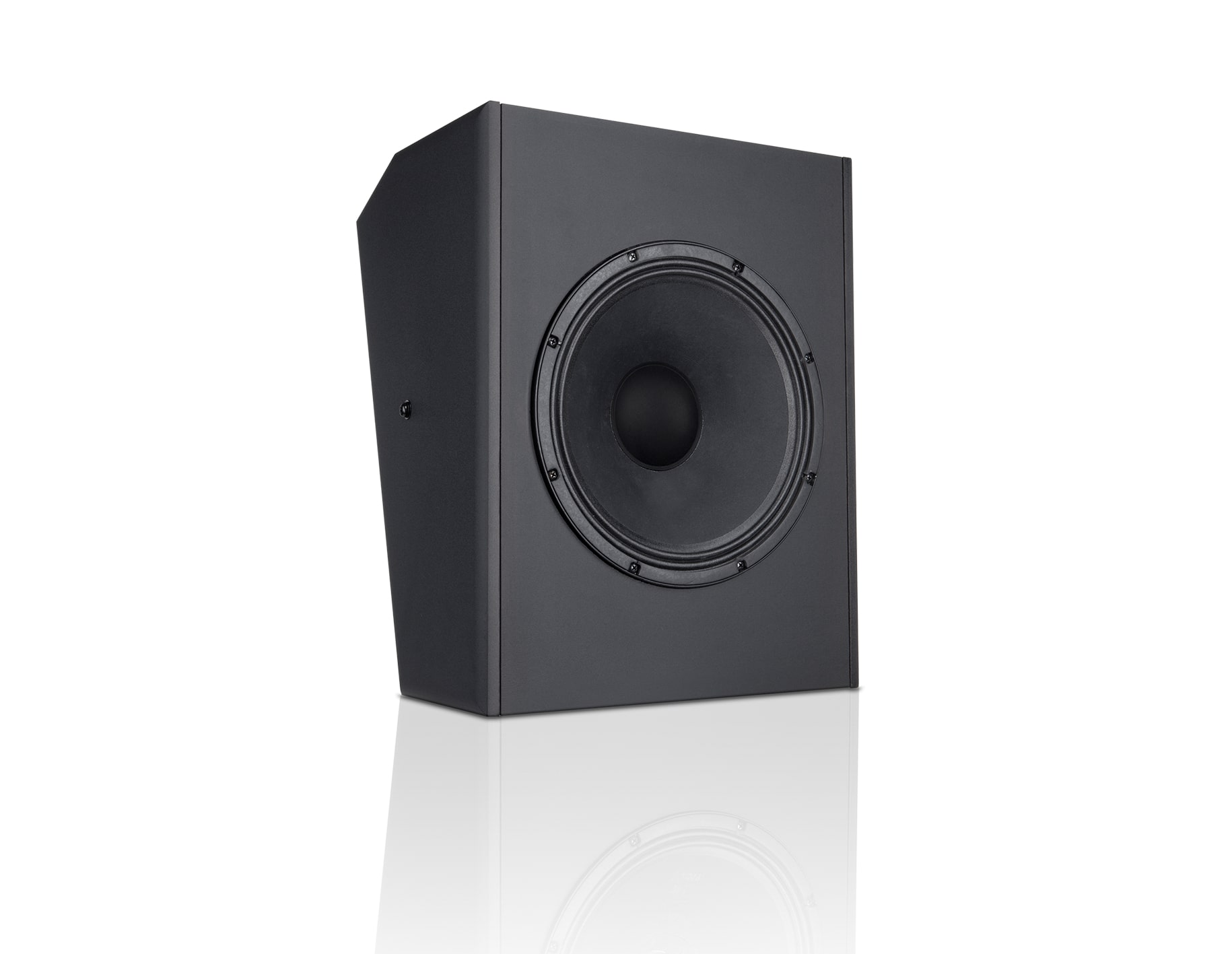

  • 12″ (305 mm) woofer with 2.5″ (63 mm) voice coil
  • 1.75” voice coil (44 mm) coaxially-mounted high frequency driver

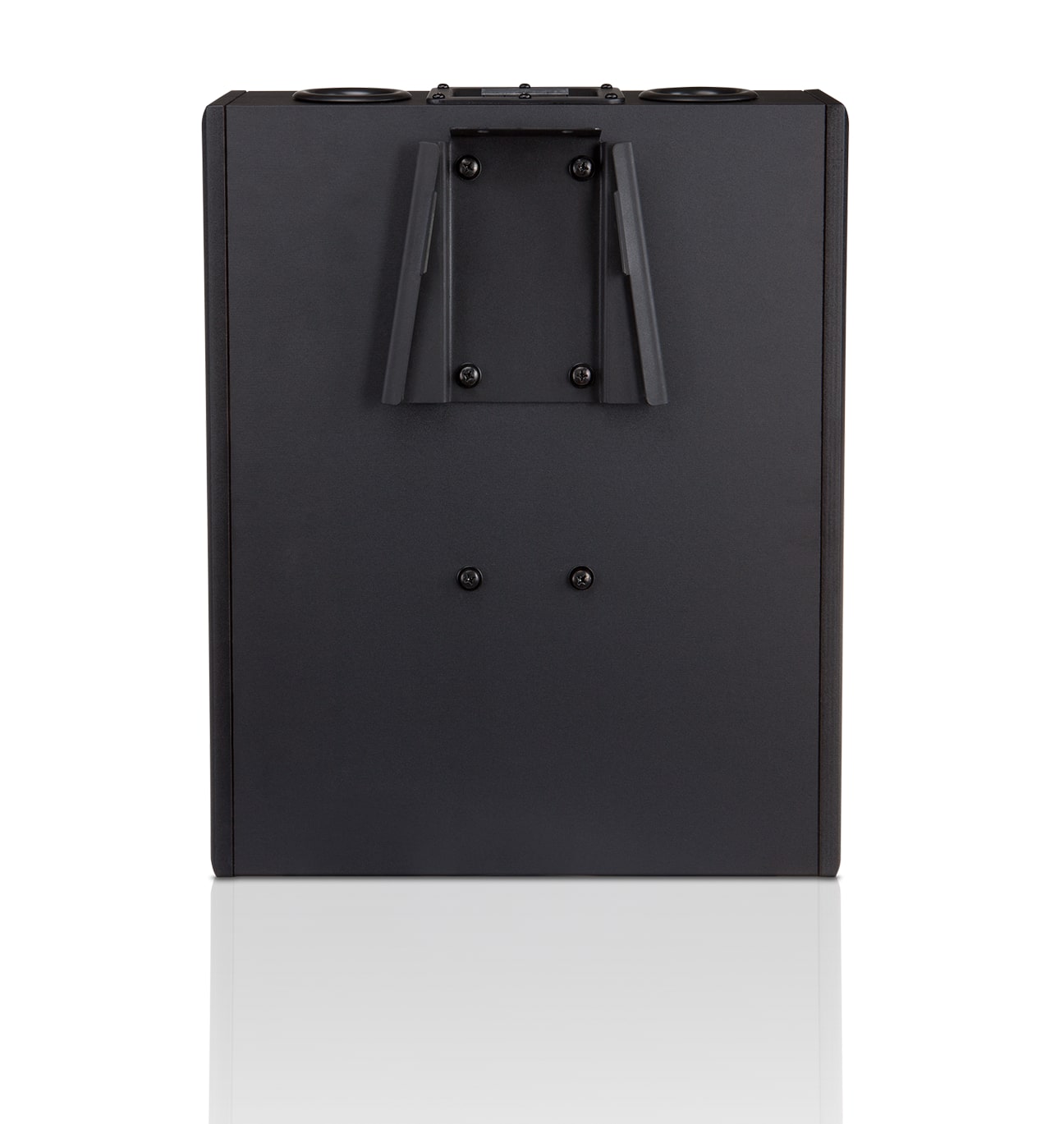

  • Pre-installed speaker-side mounting hardware for fast, easy, and secure installation. Use with QM-SW or QM-BW for wall mounting (sold separately).
  • Very high-power handling meets the demands of object-based immersive audio formats
  • Low impedance rating enables it to draw more power from amplifiers, allowing use of lower power, less costly amplifiers.
SPECIFICATIONS SR-1290
Frequency Range 1
(-10dB, Half space)		 50 Hz to 20 kHz
Rated Coverage Angle (-6 dB) 90° conical (averaged from 1 kHz to 8 kHz)

Maximum Rated SPL 4
Calculated Peak at rated power
Calculated Continuous		 128 dB
122 dB
Rated Impedance 4 ohms
Rated Noise Power 2
Recommended Amplifier Power		 400 watts continuous
800 watts
Sensitivity 1 W at 1 m, free-field 3 96 dB
Transducers 12” (305 mm) LF driver with coaxially-mounted
1.75” (44 mm) voice coil HF compression driver
Enclosure 15 mm Baltic birch plywood, non-reflective black vinyl
Dimensions (HWD) inches 20.1 x 15.75 x 12.1
Dimensions (HWD) mm 511 x 400 x 308
Weight 36.5 lb (16.5 kg)

1 Free-field, -10 dB from on-axis sensitivity

2 AES2-1984 noise signal for 2 hours

3 On-axis, free-field sensitivity, 1W, 1 m

4 Calculated from rated noise voltage and sensitivity

Specifications are subject to change without notice.
