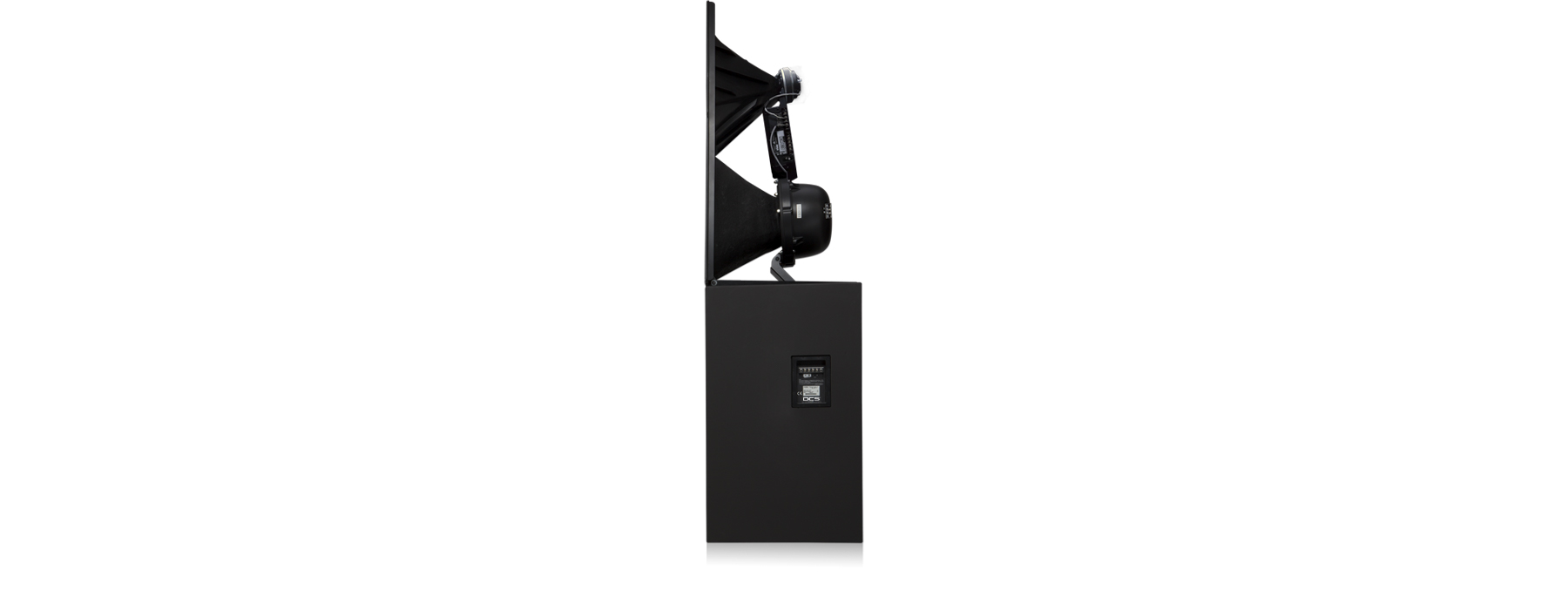

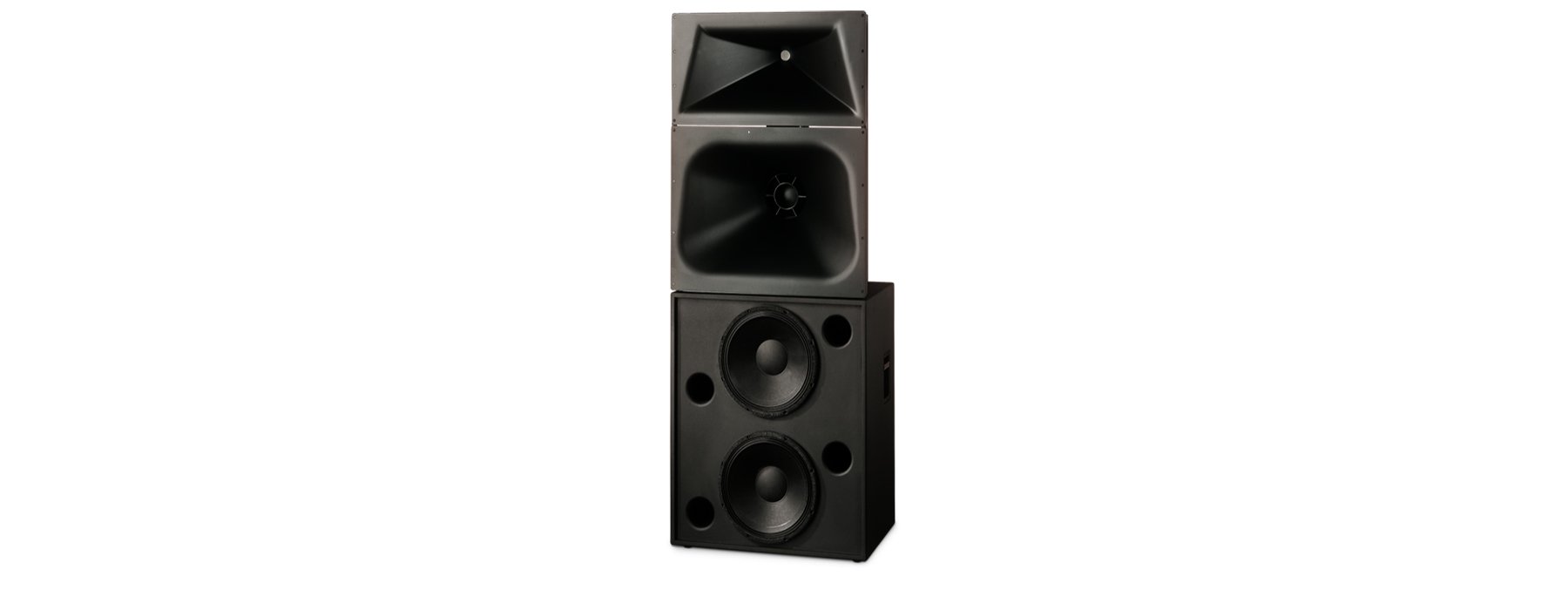

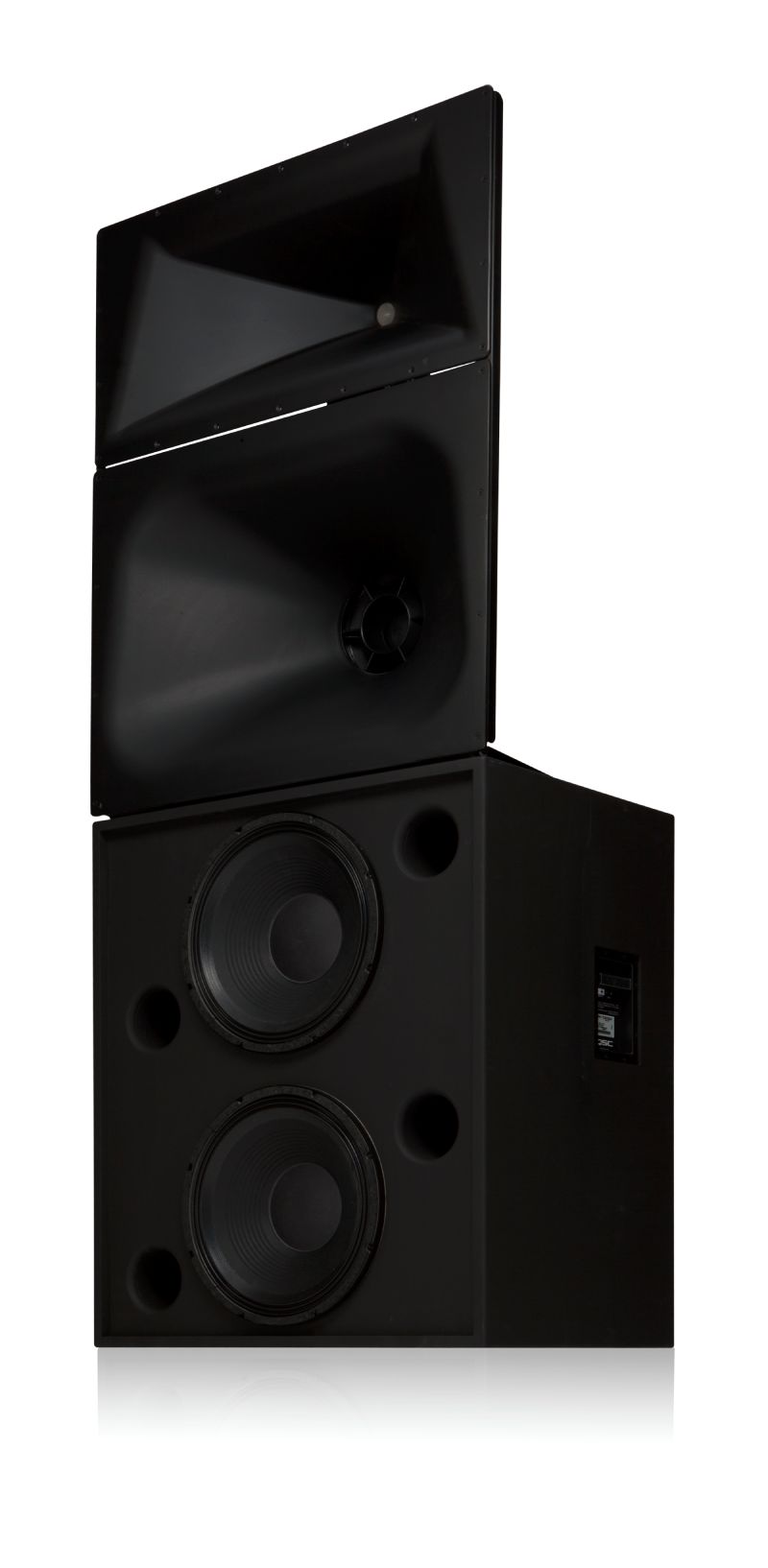

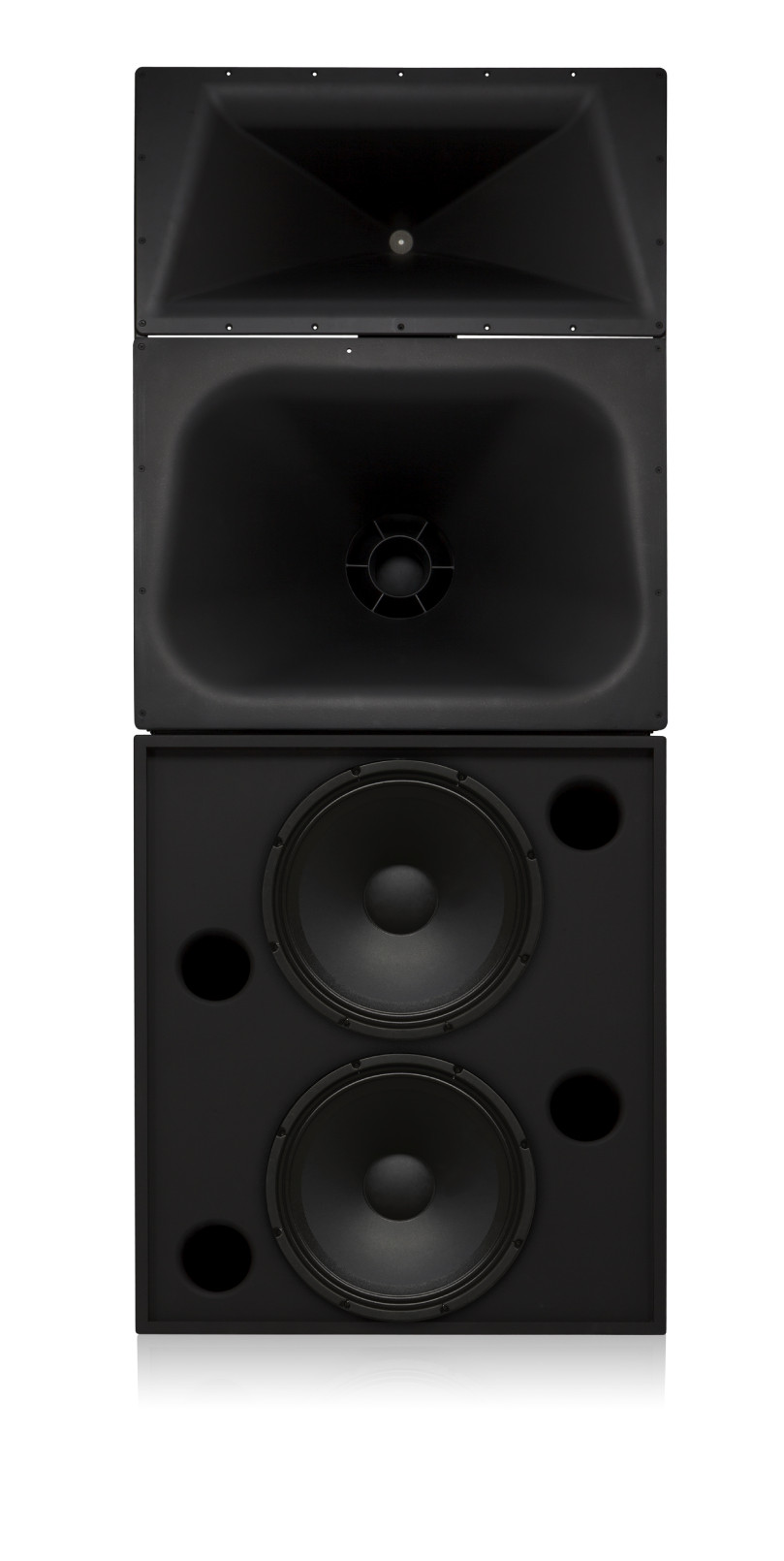

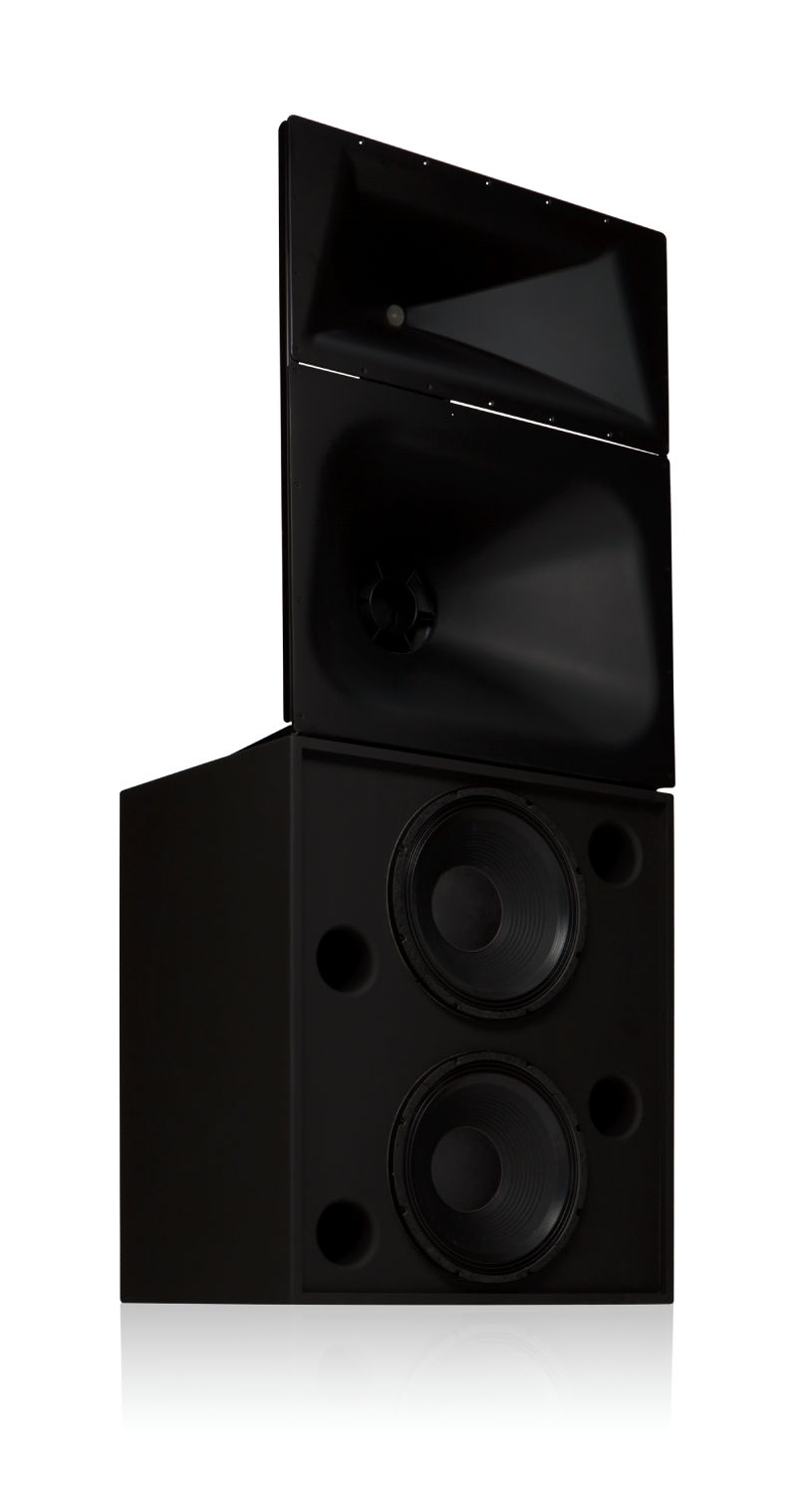

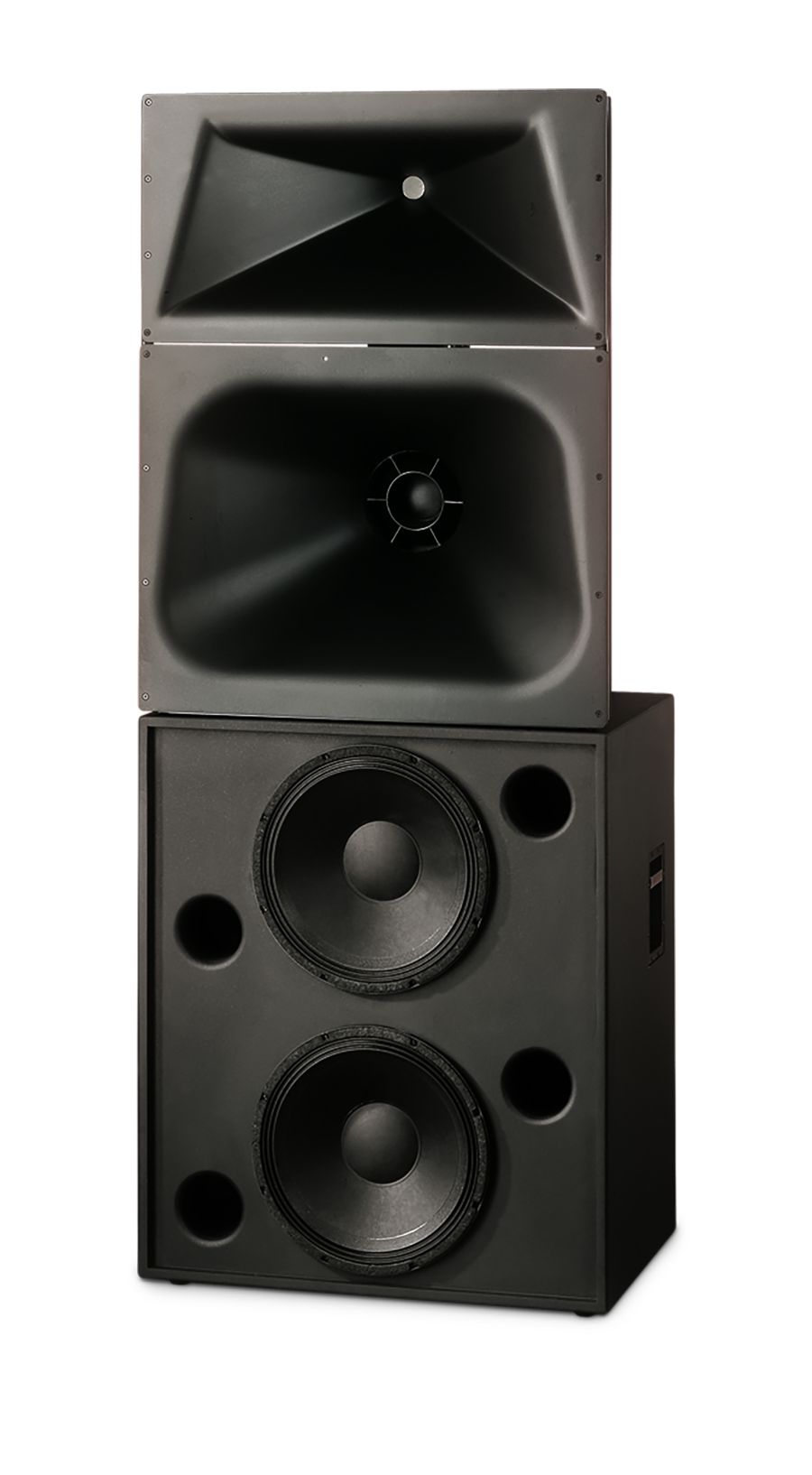

SC-223X Screen Channel Loudspeaker Overview

The DCS SC-223X is a three-way cinema screen channel loudspeaker engineered for medium to large auditoriums requiring controlled 90° horizontal coverage, high vocal intelligibility, and strong dynamic headroom. The system supports bi-amplified or passive operation for flexible cinema integration.

Engineered for High-Performance Screen Channels

Featuring dual 15-inch low-frequency drivers and a 10-inch midrange compression driver with a 1.4-inch exit and titanium diaphragm, the SC-223X delivers 37 Hz to 16 kHz frequency response with high output capability. The shallow 20-inch enclosure depth facilitates behind-screen installation while maintaining structural rigidity and acoustic consistency.

Applications

  • Medium to large cinema auditoriums
  • Multiplex screen channel systems
  • Premium Large Format (PLF) environments
  • Retrofit cinema sound upgrades

Features

  • 3-way bi-amplified or passive screen channel system
  • MH-1060X provides 90° horizontal by +20° to -30° vertical coverage
  • LF-2215 is constructed of MDF and is heavily braced
  • Low-distortion waveguides provide highly articulate dialogue
  • Shallow depth (20”) facilitates installation
SPECIFICATIONS SC-223X
Nominal Coverage 90° horizontal x +20 to -30° vertical
Frequency Range 37 Hz – 16 kHz (-6 dB)
Crossover Frequency 300Hz, 24 dB per octave in bi-amp mode
  LF-2215 MH-1060X
Impedance 4 ohms 8 ohms
Sensitivity 1 watt/1 meter, half space 98 dB 103.5 dB (bi-amp) 98 dB (passive)
Rated Noise Power
2 hours of 6 dB crest factor pink noise

Recommended Amplifier Power

 600 W1

450 W to 1200 W

 200 W2

150 W to 400 W

 600 W3

500 W to 1200 W, with subsonic
filter in passive mode
Recommended Processing Subsonic filter below 30 Hz, > 18 dB per octave 4th order LR crossover at 300Hz via QSC processor in bi-amp mode
Connectors and Controls Barrier strip screw terminals accept up to #10 AWG stranded wire Barrier strip screw terminals accept up to #10 AWG stranded wire and passive/bi-amp selector switch
Transducers Two 15-inch (381 mm) high efficiency, extended bass woofers featuring 3-inch copper voice coils 10-inch high efficiency mid range, 1.4-inch (36mm) exit, 2.4-inch titanium diaphragm compression driver
Enclosure Quasi B4 alignment, ported enclosure with fully flared ports, symmetrical port design, tuned to 36 Hz, constructed of MDF and heavily braced. Features vandal resistant woofer mounting bolts Tilt/Pan Bracket
±10° vertical tilt
±10° horizontal pan
Dimensions (HWD) 908 mm x 762 mm x 516 mm (35.75 in x 30 in x 20.3 in) 990 mm x 762 mm x 508 mm (39 in x 30 in x 20 in)
Weight – Net 78 kg (172 lb) 37.2 kg (82 lb)
System Weight 115 kg (254 lb)

1 Maximum input power tested in accordance with IEC 60268-5 recommendations, 30 Hz to 300 kHz band limiting.

2 Maximum input power tested in accordance with IEC 60268-5 recommendations, 300 Hz to 16 kHz band limiting.

3 Maximum input power tested in accordance with IEC 60268-5 recommendations, 30 Hz to 16 kHz.

Preliminary Specifications subject to change without notice.
