SC-222

Cinema Loudspeaker System

Resources

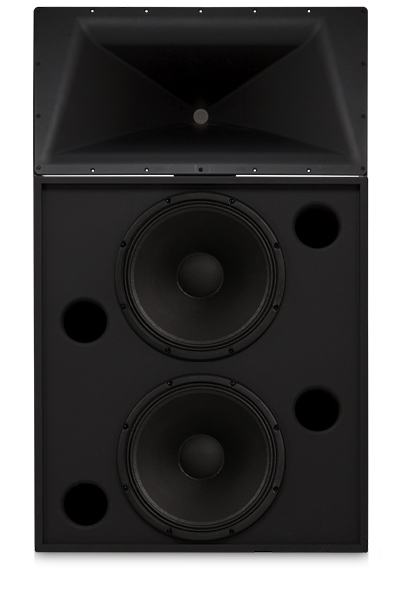

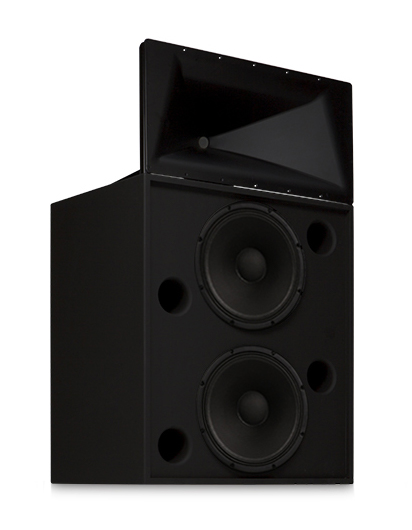

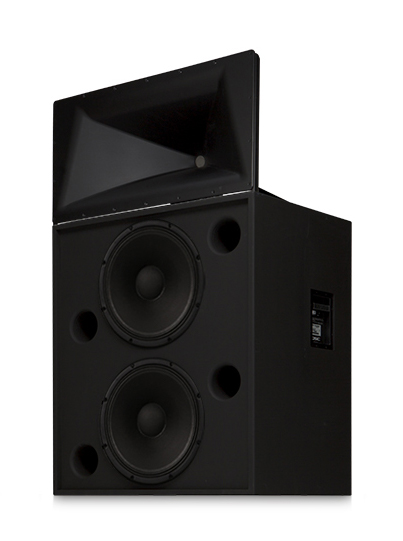

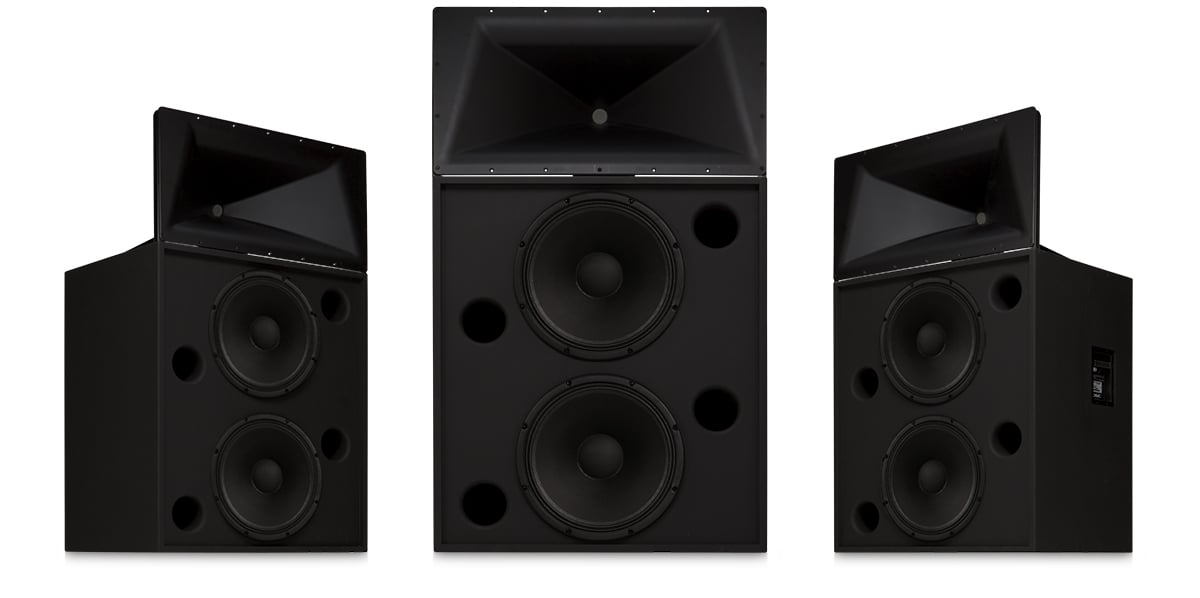

SC-222 Screen Channel Loudspeaker Overview

The DCS SC-222 is a two-way bi-amplified cinema screen channel loudspeaker engineered for medium-format auditoriums requiring controlled 90° horizontal coverage and high vocal intelligibility. The system combines dual 15-inch low-frequency drivers with a 1.5-inch exit titanium diaphragm compression driver for dynamic front-channel performance.

Engineered for Bi-Amp Cinema Integration

With a frequency response of 37 Hz to 16 kHz and a dedicated 700 Hz active crossover, the SC-222 is designed for precise screen channel reproduction using separate LF and HF amplification. The shallow 20-inch enclosure depth simplifies behind-screen installation while maintaining structural rigidity and acoustic consistency.

Applications

  • Medium-format cinema auditoriums
  • Bi-amplified screen channel systems
  • Multiplex front-channel installations
  • Retrofit cinema sound upgrades

Features

  • Two-way, bi-amplified screen channel system
  • HF-75C provides 90° horizontal by +20° to -35° vertical coverage
  • LF-2215 is constructed of MDF and features single woofer chambers
  • Low-distortion waveguide provides highly articulate dialogue
  • Shallow depth (20”) facilitates installation behind the screen
SPECIFICATIONS SC-222
Nominal Coverage 90° horizontal x +20 to -35° vertical
Frequency Range 37 Hz – 16 kHz (-6 dB)
Crossover Frequency 700 Hz, 24 dB per octave
  LF-2215 HF-75C
Impedance 4Ω 8Ω
Sensitivity 1 watt/1 meter, half space 98 dB 108 dB
Maximum Input Power1
8 hours of 6 dB crest factor IEC 268 noise spectrum 600 W RMS 40 W RMS
2 hours of 6 dB crest factor pink noise, 50 Hz – 20 kHz, AES method 800 W RMS 75 W RMS
Recommended Amplifier Power 1200 W RMS maximum 100 W RMS maximum
Recommended Processing Subsonic filter below 30 Hz, > 18 dB per octave 4th order LR crossover at 700 Hz via QSC processor
Connectors Barrier strip screw terminals accept up to #10 AWG stranded wire Barrier strip screw terminals accept up to #10 AWG stranded wire
Transducers Two 15″ (381mm) high efficiency, extended bass woofers featuring 3” copper voice coils 1.5” (38mm) exit, 3” titanium diaphragm compression driver
Enclosure Quasi B4 alignment, ported enclosure with fully flared ports, symmetrical port design, constructed of MDF and heavily braced. Features vandal resistant woofer mounting bolts Tilt/Pan Bracket ±10° vertical tilt ±10° horizontal pan
Dimensions (HWD) 35.75” x 30” x 20.3” (908 mm x 762 mm x 516 mm) 16” x 30” x 20” (406 mm x 762 mm x 508 mm)
Weight – Net 172 lb (78 kg) 40 lb (18.4 kg)

1 Maximum input power tested in accordance with IEC 60268-5 recommendations, 30 Hz to 300 kHz band limiting.

Preliminary Specifications subject to change without notice.
