SC-1120

2-Way Small Room Screen Channel Loudspeaker, Passive

Resources

SC-1120 Small Room Screen Channel Overview

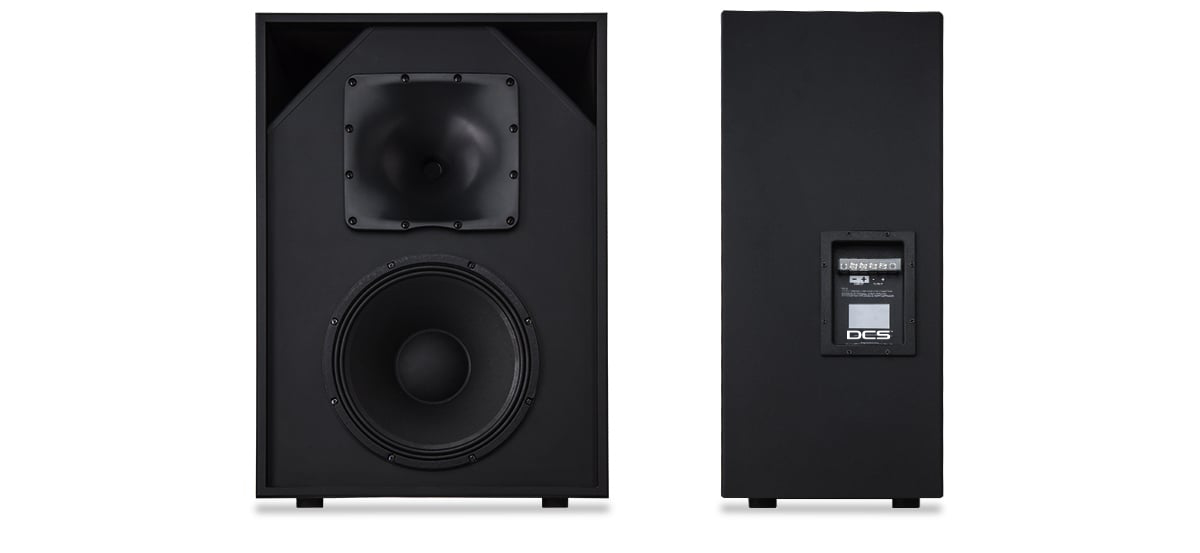

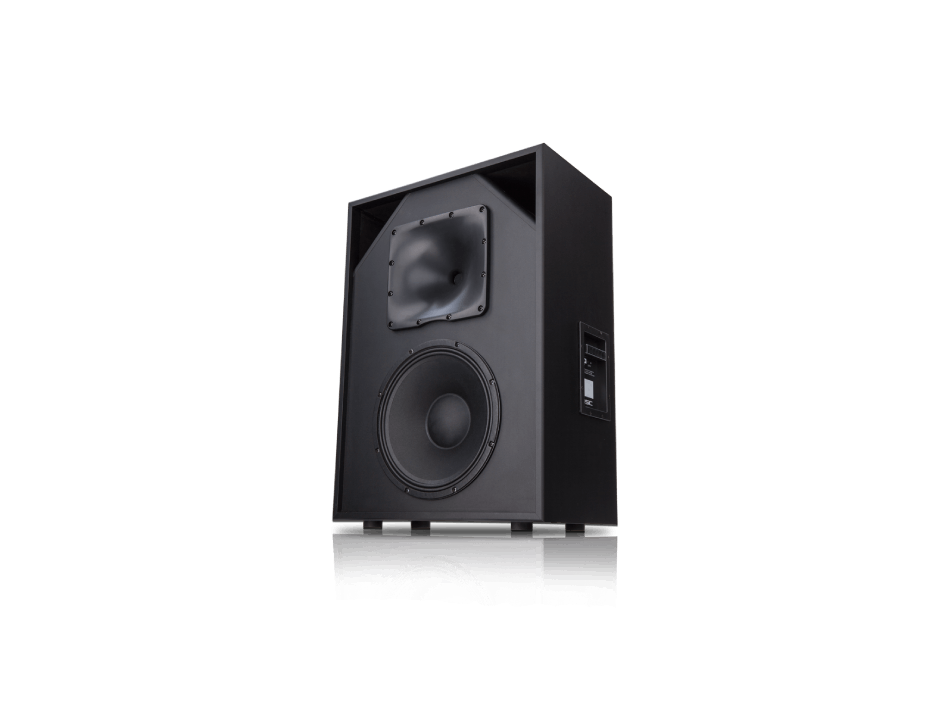

The DCS SC-1120 is a compact two-way passive screen channel loudspeaker optimized for smaller cinemas up to 35 feet (11 m) in room length. Featuring a 12-inch low-frequency driver and high-frequency compression driver mounted to a 90° axisymmetric horn, the SC-1120 delivers controlled coverage and strong vocal intelligibility in space-constrained installations.

Engineered for Compact Cinema Installations

With a frequency range of 48 Hz to 19 kHz and peak output up to 126 dB SPL, the SC-1120 provides reliable front-channel performance while requiring less than 12 inches behind the screen. Its passive crossover design allows operation from a single amplifier channel, simplifying system integration for smaller auditoriums.

Applications

  • Small-format cinema auditoriums
  • Rooms up to 35 ft (11 m) in length
  • Compact screen channel installations
  • Space-constrained retrofit projects

Features

  • Optimized design for smaller cinemas—up to 35 ft (11 m) in length
  • Single enclosure, two-way screen channel loudspeaker
  • Requires less than 12 inches (305 mm) behind screen
  • Passive crossover requires only one amplifier channel
  • 90° Axisymmetric horn
  • 12-inch (305 mm) woofer with 2.5-inch (63 mm) voice coil
  • 1.75-inch (44 mm) voice coil HF compression driver

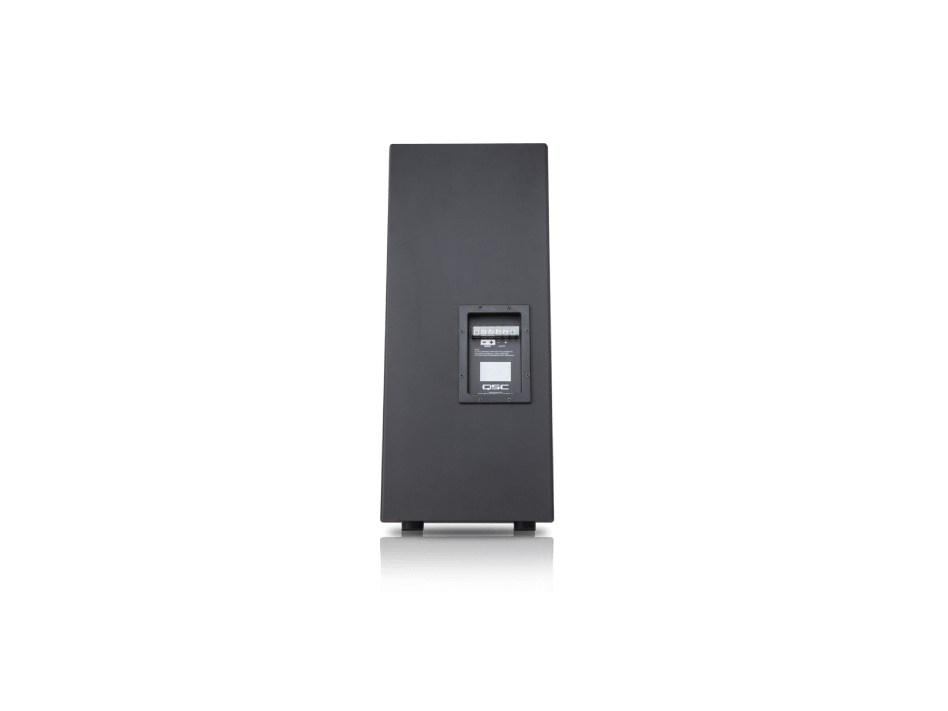

  • Screw-type barrier-strip connectors
SPECIFICATIONS SC-1120
Rated Coverage Angle (-6 dB) 90° Axisymmetric
Frequency Range 1 (-10 dB) 48 Hz to 19 kHz
Rated Noise Power 2 300 W
Sensitivity 3 95.5 dB
Maximum Continuous SPL 4 120 dB
Maximum Peak SPL 4 126 dB
Impedance 8Ω
Maximum Recommended Amplifier Power 600 W
Transducers LF: 12-inch (305 mm) woofer, 2.5-inch voice coil HF: Compression driver with 1.75-inch (44 mm) voice coil
Enclosure MDF, non-reflective vinyl wrap
Dimensions (HxWxD) inches 27.2 × 19.5 × 11.7
Dimensions (HxWxD) mm 690 × 497 × 297
Net Weight 51 lb (23.2 kg)

1 Free-field, unprocessed, -10 dB from on-axis sensitivity

2 AES2-1984 noise signal for 2 hours

3 On-axis, free-field sensitivity, 2.83 V at 1 m

4 Calculated from rated noise voltage and sensitivity

Specifications are subject to change without notice.
