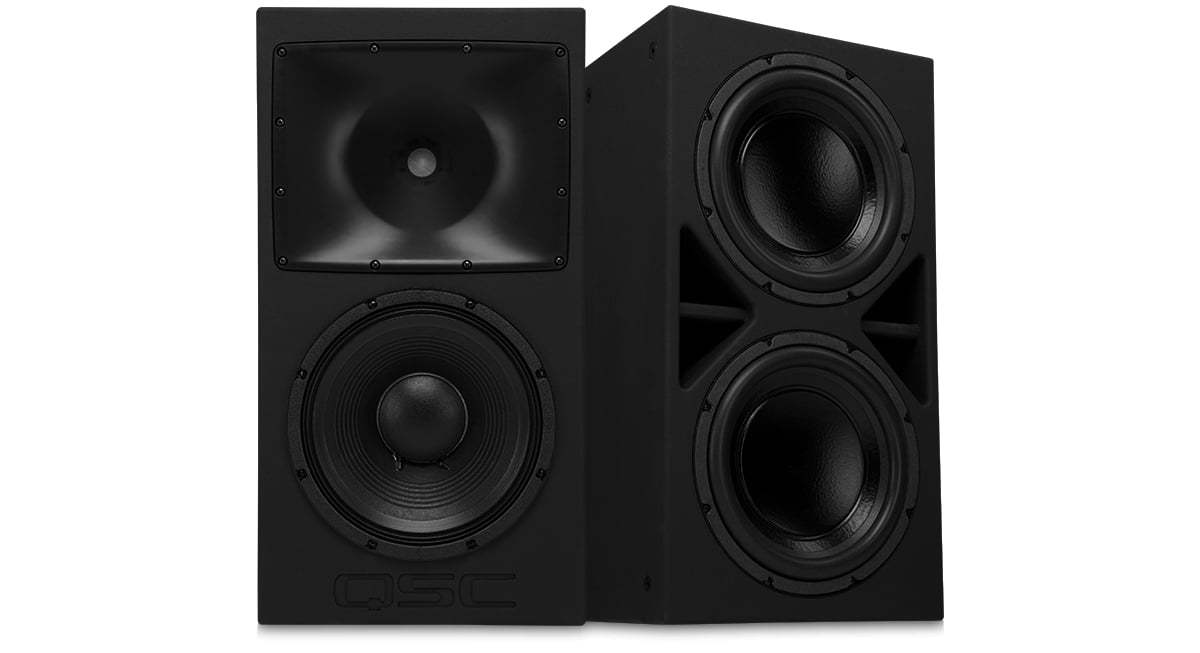

Reference Monitor System

The Reference Monitor System from combines everything we know about achieving the best possible sound for critical listening situations. A collection of the best audio components is only part of the answer — the real secret is Total System Design. All parts are designed to work together in a system, as a system. It’s what makes the Reference Monitor System the new audio reference standard for the most demanding sound professionals and discriminating listeners.

  • Complete system including loudspeakers, signal processing, and power amplification
  • For rooms up to 35 feet (11 meters) from screen to last row of seating
  • New RSC-112 3-way loudspeaker for low, mid, and high frequencies
  • New RSB-212 subwoofer featuring two high-excursion 12-inch drivers
  • Legendary DCA amplifiers for crystal-clear power

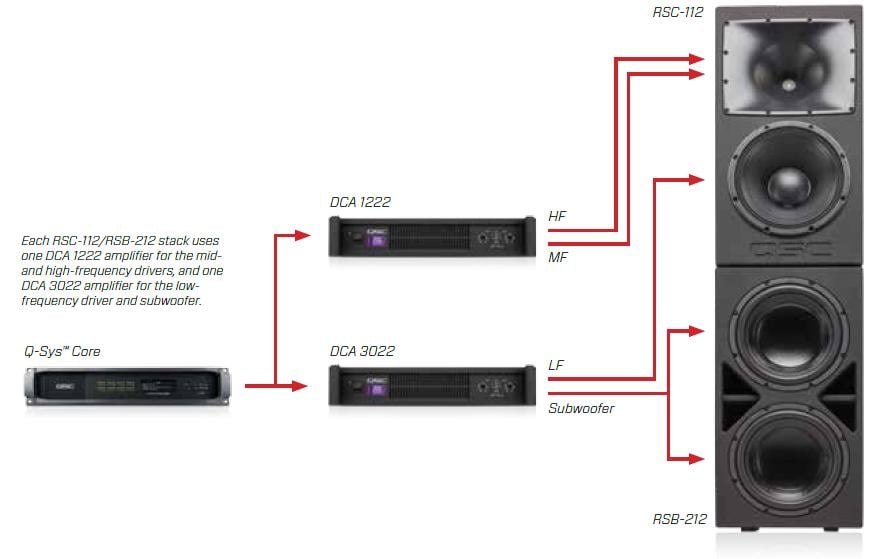

Complete System Diagram

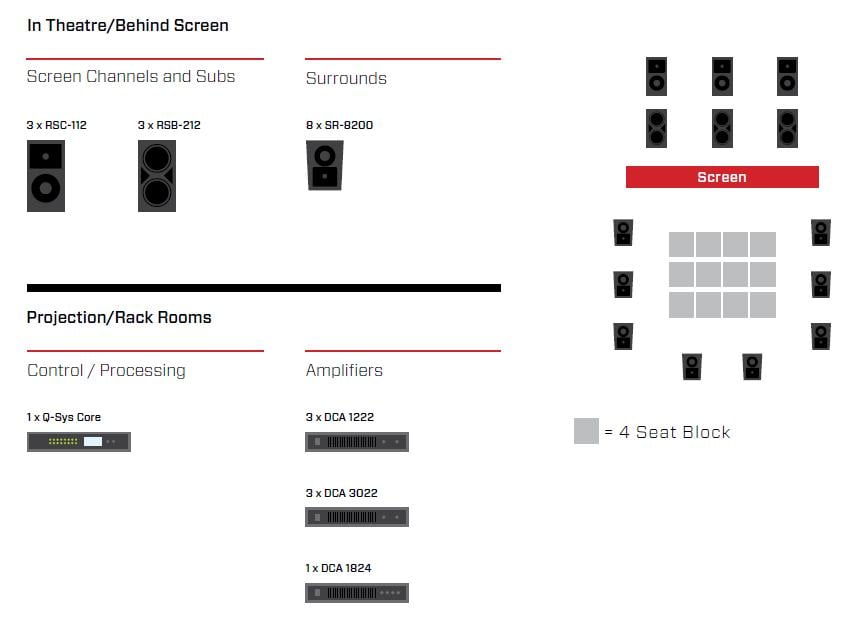

In Theatre/Behind Screen System Diagram

Resources

A complete loudspeaker system for critical listening applications, including matched signal processing and amplifiers.

Each Left, Center, and Right loudspeaker position uses one RSC-112 and one RSB-212.

SELECT A MODEL

  RSC-112 RSB-212
Rated Coverage Angle (-6 dB)  90 degrees Axisymmetric  Omnidirectional
Frequency Range (-10 dB) 1  55 Hz to 20 kHz 30 Hz to 80 Hz
Crossover Frequencies
(up to 48 dB/oct using dedicated
Q-SYS DSP)		 LF: 80 to 120 Hz (selectable)
MF: 1.2 kHz / HF: 7 kHz		 N/A
Rated Noise Power (Voltage)2 LF: 500 W / 63 V
MF: 80 W / 25 V
HF: 55 W / 20 V		 1000 W / 54.8 V
Sensitivity3 LF: 94 dB / MF: 107 dB / HF: 105 dB 96 dB
Maximum Continuous SPL4 LF: 121 / MF: 126 / HF: 122 120.5 dB
Maximum Peak SPL44 LF: 127 / MF: 132 / HF: 128 126.5 dB
Rated Impedance  LF: 8Ω, MF: 8Ω, HF: 8Ω, 3Ω
Maximum Recommended
Amplifier Power		  LF: 1000 W / MF: 500 W / HF: 300 W  1000 W
Transducers LF: 12 in. (305 mm) woofer
MF/HF: coaxial neodymium
compression driver with
3.5″ (90mm) MF voice
coil
and 1.75″ (44mm) HF voice coil		 2 x 12 in. (305 mm) Kevlar-reinforced
paper cone woofers,
3 in. voice coils
Input Connector Parallel NL8: 1/to sub, 2/LF, 3/MF, 4/HF Parallel NL8: 1/to sub, 2/LF, 3/MF, 4/HF
Enclosure Material 15-ply Baltic birch plywood 15-ply Baltic birch plywood
Dimensions (HWD) inches 28.5 x 15.1 x 13.5 28.5 x 15.1 x 13.5
Dimensions (HWD) mm 725 x 383 x 344 725 x 383 x 344
Weight 66.4 lb (30.1 kg) 89 lb (40.4 kg)
Optional Accessories RBK-12 baffle wing kit  RBK-12 baffle wing kit
  Details Details

1   Free-field, unprocessed, -10 dB from on-axis sensitivity.

2 AES2-1984 noise signal for 2 hrs.

3 On-Axis, free-field sensitivity, 2.83V, 1 m

4 Calculated from rated noise voltage and sensitivity

All specifications are subject to change without notice.
